GL230 GL230

GL 230 is a 230W moving beam light with an unprecedented brightness usually achievable only with far greater wattages.GL 230 is groundbreaking for the purity of its beam, which is sharply defined and free of any halo or discoloration around the edges. It offers 14 different colors and 17 gobos, allowing you to change the shape of the beam and create an array of spectacular mid-air effects

  • Light source

    230W Platinum 7R discharge lamp

  • LIGHT OUTPUT

    Unprecedented brightness – comparable to wattages many times higher (59,760 lx at 20m)

  • Zoom range

    Adjustable beam angle from 0 to 3.8°

technical

specification

  • Source

      230W Platinum 7R discharge lamp
      Unprecedented brightness – comparable to wattages many times higher (59,760 lx at 20m)
  • Optical System

      Interchangeable color wheel with 14 fixed colors
      Interchangeable gobo wheel with 17 fixed gobos
      8-facet rotating prism
  • Control and Programming

      16/20 DMX Channel
  • Static Gobos

      Interchangeable color wheel with 14 fixed colors
  • Rotating Gobos

      Interchangeable gobo wheel with 17 fixed gobos
  • Electrical Specification

      Power Input:100V~240V 50/60Hz
      Power Consumption: 350W Max.
      Net Weight: 18KG
      Gross Weight: 21.5KG
      Carton Box Size: 510X440X790 mm

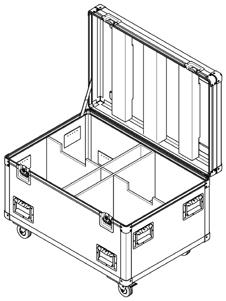

      Flightcase Size: 990X440X740 mm
      Flightcase Weight: 36.5KG
GL230 GL230

gobos & colors
